MK-Case

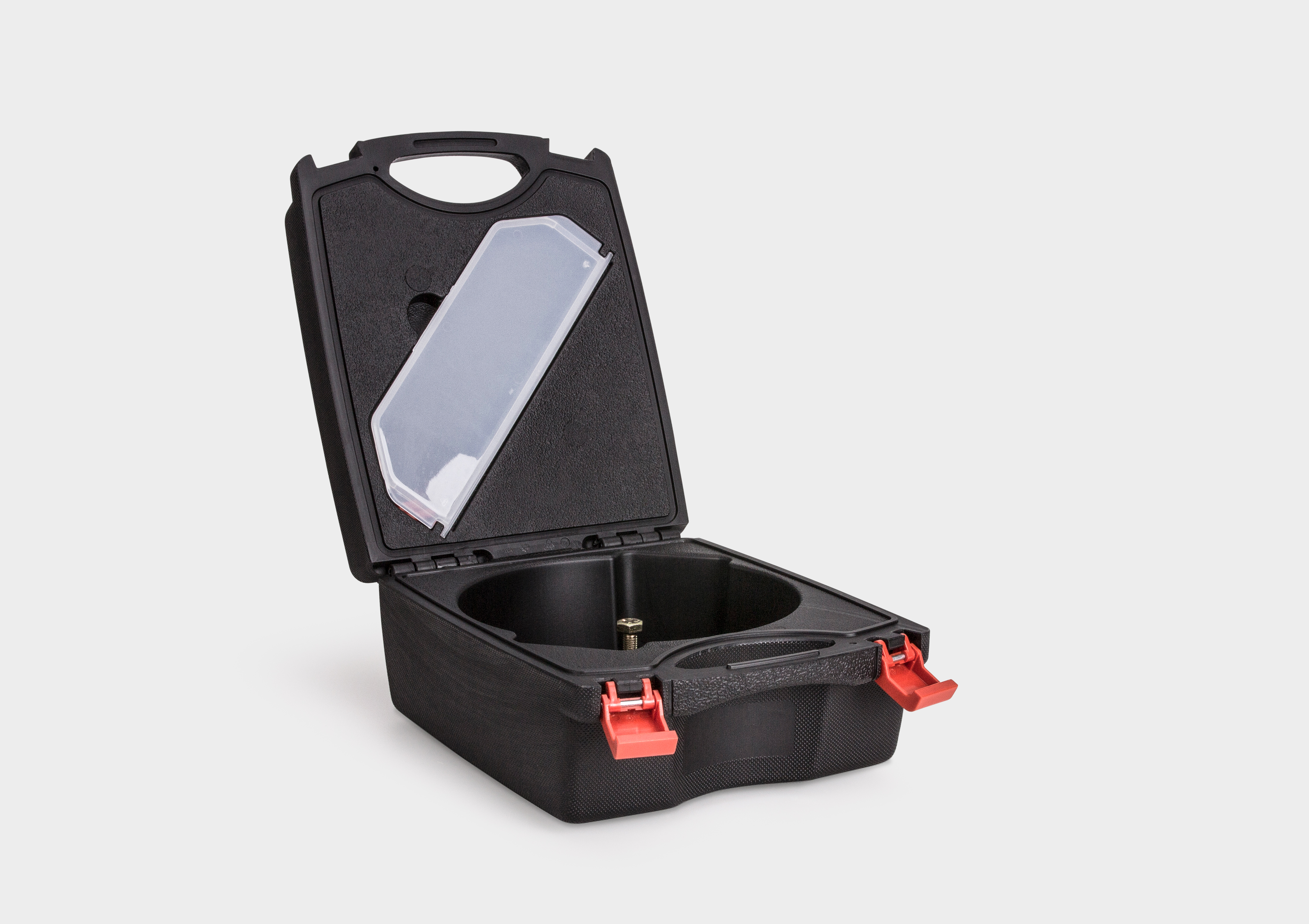

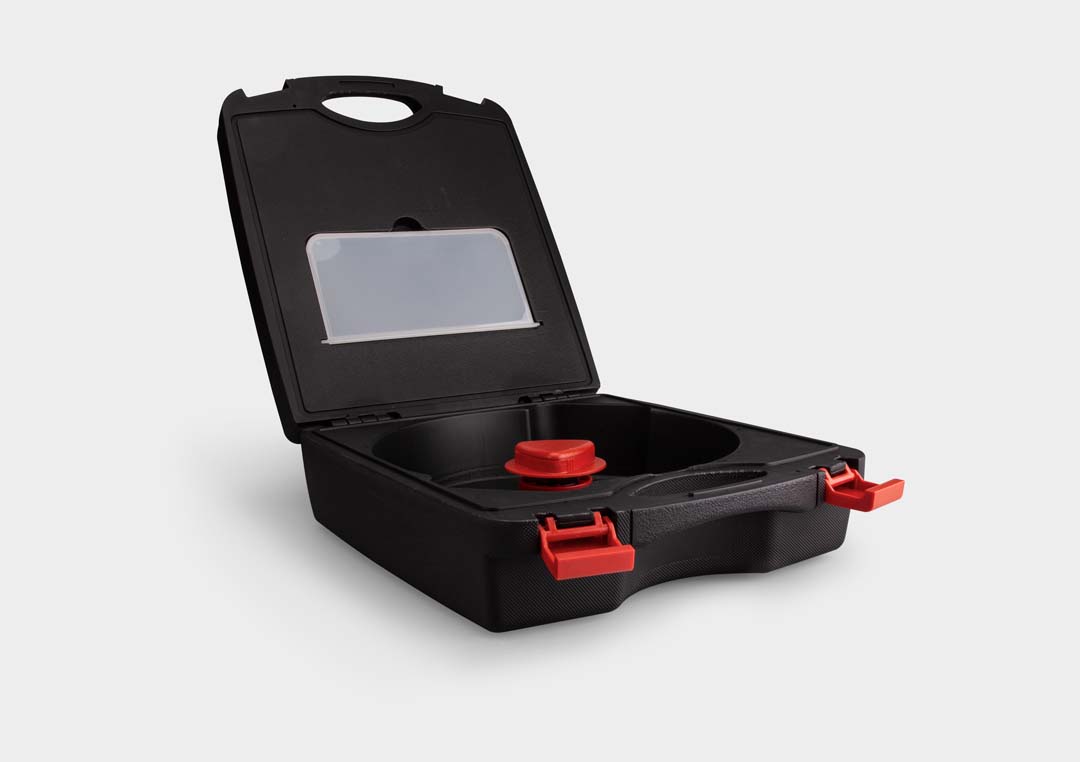

Plastic Case MK-Case
Plastic cases sturdily designed for all-around protection of high-quality milling cutter heads
- extremely strong blown double-wall case
- secure center fixing screw offers high protection of cutter edge
- centering points on base and cover for secure stacking
All product features at a glance
- secure center fixing screw offers high protection of cutter edge
- extremely strong blown double-wall case
- centering points on base and cover for secure stacking
- built in recess points for easy tool removal
- textured ergonomic carry handle
- durable hinges
- sturdy hinge and lock system
- recessed area on lid for labeling
- available to accomodate various tool diameters
- customized branding available on lid and fixing screw
- built in storage compartment for accessories
- additional adapter rings available to accomodate other arbor holes
Available in the following materials
- case shells in Polyethylene (PE)
- closures, fixing screws and adapter rings in ABS
Available in the following variants
- MKC 50, 80, 160 and 250 case shells in black; MKC 160 and 250 closures in red
- further colors and color combinations on request
- MKC 50 and 80: one-piece version with integral closures and additional foam inserts
Delivery program
| Image | Name | Actions | ||
|---|---|---|---|---|
|
F-MK Case 80 01/01 black 01 HDPE 58
Material number: 47513 Packaging unit: 30 Minimum order quantity: 30 Availability: On stock |
Color: black 01 Outer width (mm): 141.00 Outer height (mm): 131.00 Outer depth (mm): 74.00 Tool holder diam. (mm): 15.88 Max. tool diameter 45°/90°: 80/100 Max. tool height (mm): 50.00 Material: HDPE 58 | Type of part: Assembled Description: w/ foam insert in cover Foam available: yes Foam insert: SE MKC 80/10 SCHWARZ | |
|
MK Case 160 02/02 black 01 HDPE 58
Material number: 47550 Packaging unit: 8 Minimum order quantity: 8 Availability: On stock |
Color: black 01 Outer width (mm): 272.00 Outer height (mm): 217.00 Outer depth (mm): 130.00 Tool holder diam. (mm): 32.00 Max. tool diameter 45°/90°: 160/180 Max. tool height (mm): 63.00 Material: HDPE 58 | Type of part: Assembled Description: adapter Ø 40 and fixing screw | |
|
MK Case 250 01/02 black 01 HDPE 58
Material number: 47553 Packaging unit: 6 Minimum order quantity: 6 Availability: On stock |
Color: black 01 Outer width (mm): 380.00 Outer height (mm): 320.00 Outer depth (mm): 130.00 Tool holder diam. (mm): 40.00 Max. tool diameter 45°/90°: 250/270 Max. tool height (mm): 63.00 Material: HDPE 58 | Type of part: Assembled Description: adapter Ø 60 and fixing screw |
