TopPack XLine
Plastic Tube Container TopPack XLine
Plastic packaging tubes for extra long solid carbide drills and shank tools
- patented shankholding system and longer plug size offer optimum fit of the tool
- ergonomic shape plus incorporated grooves provide grip for easy opening
- in combination with a central support perfect for extreme drill lengths up to 765 mm
All product features at a glance
Product features TopPack XLine
TopPack XLine is an ideal packaging solution for extra-long drill bits and shank tools. The extended shank-holding plug with the patented shank clamping design keeps the drill bit firmly and securely in place. The “ribbed”, ergonomic shank is particularly easy to grip and facilitates opening. The outer part of the packaging tube is made from highly transparent PVC for perfect presentation of the exclusive drills.
- patented shankholding system and longer plug size offer optimum fit of the tool
- ergonomic shape plus incorporated grooves provide grip for easy opening
- in combination with a central support perfect for extreme drill lengths up to 765 mm

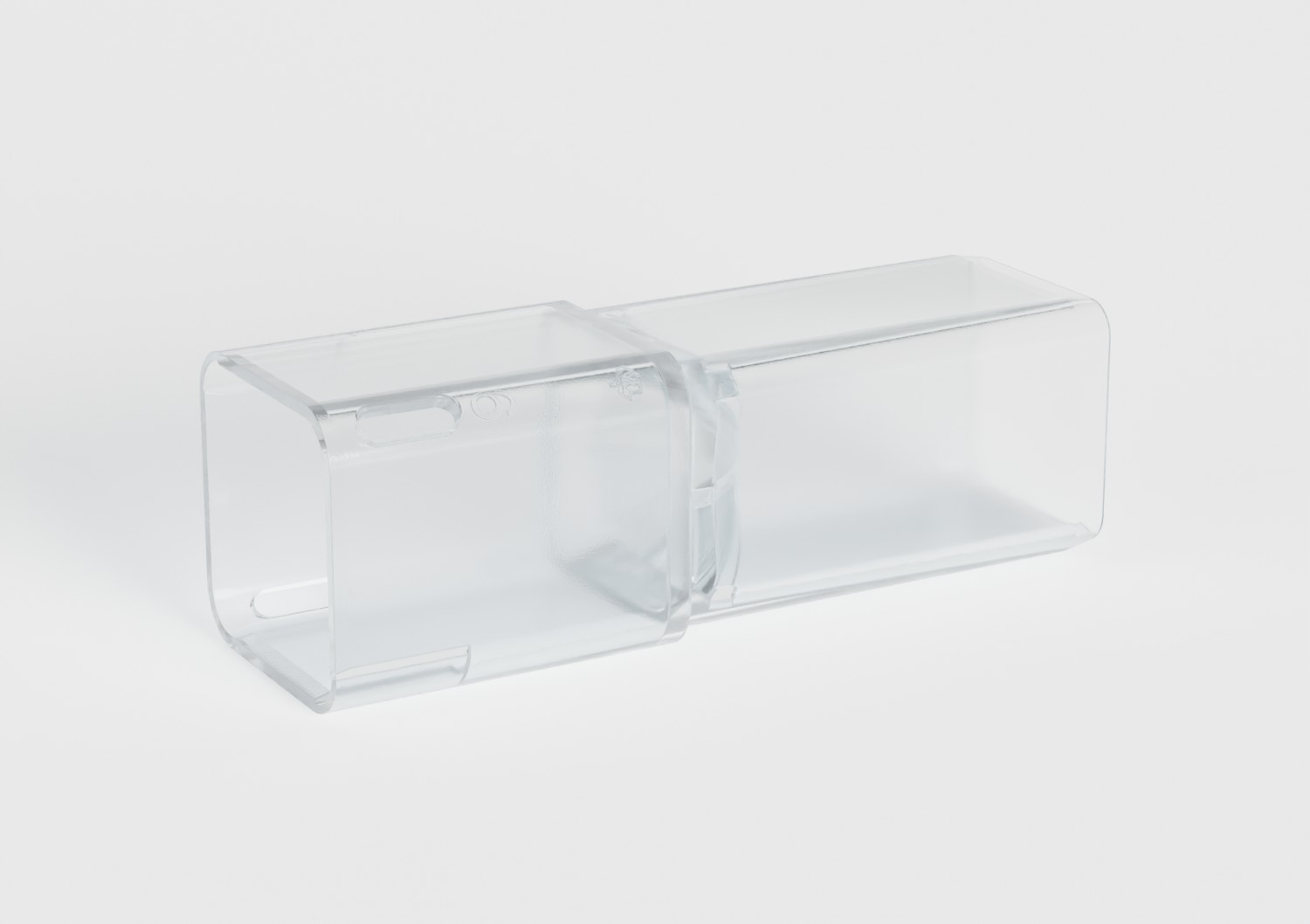

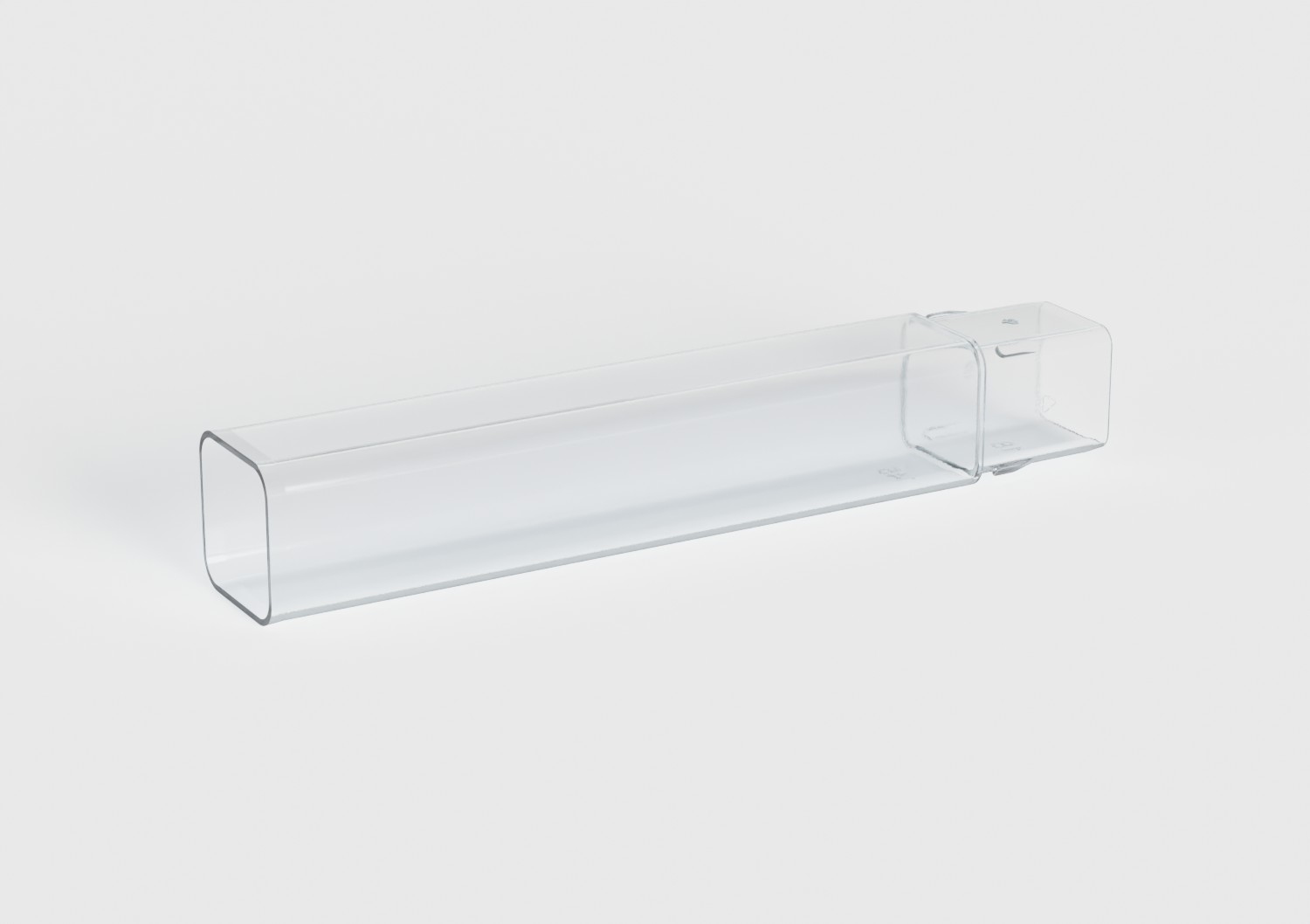

- the optional middle part in combination with the adapter ensures central positioning and safe storage of the drill
- reclosable and reusable added value
- attractive design
- optimum visibility of content
- sturdy, oil, and moisture resistant
- for information on the compatibility between the base plug, the outer part and the middle part and the resulting usable length, please refer to the last page of the data sheet
Available in the following materials
- outer part: PVC
- base plug: Polyethylene (PE)
- middle part: PVC
- middle part adapter: Polypropylene (PP)
Available in the following variants
- outer part and middle part in clear, base plug and middle part adapter in a variety of attractive standard colors
- all parts are packed separately in individual cartons
- TPKXL 18x431 V02 A: outer part with indentation for fixing the tools
Delivery program
| Image | Name | Actions | ||
|---|---|---|---|---|
|
TKA 8-3/4 Cap natural LDPE 04
Material number: 114657 Packaging unit: 1000 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color | Material: LDPE 04 Type of part: Adaptor cap | |
|
TKAXL 18-10/1 Centre transp. PP 23
Material number: 119772 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Shank diam. (mm): 10.00 | Material: PP 23 Type of part: Adapter | |
|
|
TKAXL 18-12/1 Centre transp. PP 23
Material number: 119773 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Shank diam. (mm): 12.00 | Material: PP 23 Type of part: Adapter | |
|
|
TKAXL 18-14/1 Centre transp. PP 23
Material number: 119774 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Shank diam. (mm): 14.00 | Material: PP 23 Type of part: Adapter | |
|
|
TKAXL 18-6/1 Centre transp. PP 23
Material number: 119770 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Shank diam. (mm): 6.00 | Material: PP 23 Type of part: Adapter | |
|
|
TKAXL 18-8/1 Centre transp. PP 23
Material number: 119771 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Shank diam. (mm): 8.00 | Material: PP 23 Type of part: Adapter | |
|

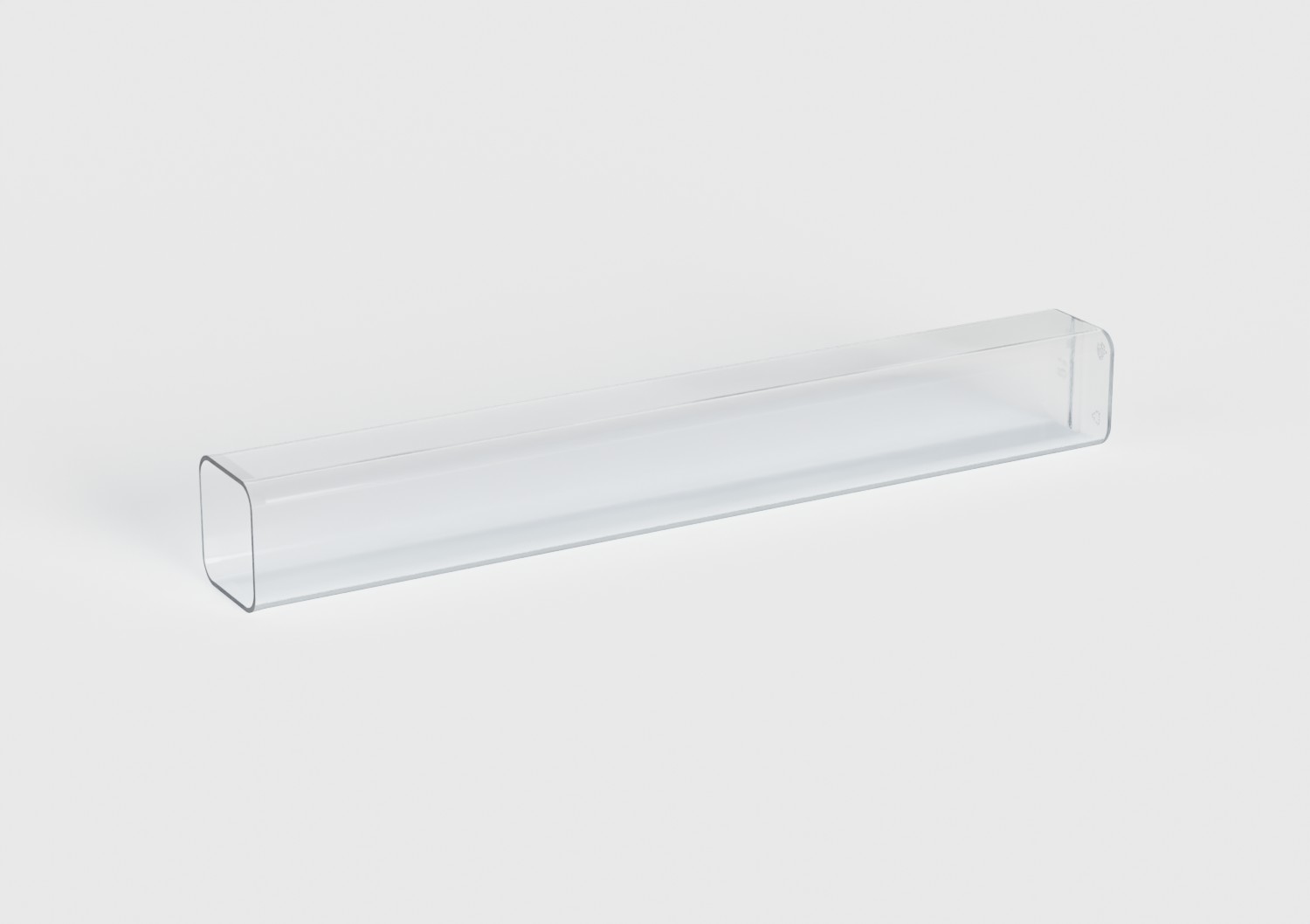

TPKXL 13x205 A clear PVC 01
Material number: 194816 Packaging unit: 340 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 205.00 | Material: PVC 01 Type of part: Outer part | |
|
|
TPKXL 13x260 A clear PVC 01
Material number: 194817 Packaging unit: 340 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 260.00 | Material: PVC 01 Type of part: Outer part | |
|
TPKXL 13x40-3/1 I natural LDPE 04
Material number: 61945 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 40.00 Shank diam. (mm): 3.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 13x40-4/1 I natural LDPE 04
Material number: 56304 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 40.00 Shank diam. (mm): 4.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 13x40-5/1 I natural LDPE 04
Material number: 56305 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 40.00 Shank diam. (mm): 5.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 13x40-7/1 I natural LDPE 04
Material number: 61947 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 40.00 Shank diam. (mm): 7.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 13x40-8/1 I natural LDPE 04
Material number: 61948 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 40.00 Shank diam. (mm): 8.00 | Material: LDPE 04 Type of part: Inner part | |
|
TPKXL 18x145 M clear PVC 01
Material number: 119775 Packaging unit: 360 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 145.00 | Material: PVC 01 Type of part: Middle part | |
|
|
TPKXL 18x200 M clear PVC 01
Material number: 119776 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 200.00 | Material: PVC 01 Type of part: Middle part | |
|
|
TPKXL 18x243 A clear PVC 01
Material number: 194818 Packaging unit: 340 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 243.00 | Material: PVC 01 Type of part: Outer part | |
|
|
TPKXL 18x285 M clear PVC 01
Material number: 119777 Packaging unit: 270 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 285.00 | Material: PVC 01 Type of part: Middle part | |
|
|
TPKXL 18x410 M clear PVC 01
Material number: 119778 Packaging unit: 220 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 410.00 | Material: PVC 01 Type of part: Middle part | |
|
|
TPKXL 18x50-10/1 I natural LDPE 04
Material number: 61952 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 10.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-11/1 I natural LDPE 04
Material number: 61953 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 11.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-12/1 I natural LDPE 04
Material number: 61954 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 12.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-13/1 I natural LDPE 04
Material number: 61955 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 13.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-14/1 I natural LDPE 04
Material number: 61956 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 14.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-16/1 I natural LDPE 04
Material number: 119779 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 16.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-6/1 I natural LDPE 04
Material number: 61949 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 6.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-8/1 I natural LDPE 04
Material number: 61950 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 8.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 18x50-9/1 I natural LDPE 04
Material number: 61951 Packaging unit: 680 Minimum order quantity: 5000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 50.00 Shank diam. (mm): 9.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 26x240 A clear PVC 01
Material number: 56400 Packaging unit: 170 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 26.00 Inner length (mm): 240.00 | Material: PVC 01 Type of part: Outer part | |
|
|
TPKXL 26x291 A clear PVC 01
Material number: 56401 Packaging unit: 85 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 26.00 Inner length (mm): 291.00 | Material: PVC 01 Type of part: Outer part | |
|
|
TPKXL 26x50-16/1 I natural LDPE 04
Material number: 61957 Packaging unit: 340 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 26.00 Inner length (mm): 50.00 Shank diam. (mm): 16.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 26x50-18/1 I natural LDPE 04
Material number: 61958 Packaging unit: 340 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 26.00 Inner length (mm): 50.00 Shank diam. (mm): 18.00 | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXL 26x50-20/1 I natural LDPE 04
Material number: 61959 Packaging unit: 340 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 26.00 Inner length (mm): 50.00 Shank diam. (mm): 20.00 | Material: LDPE 04 Type of part: Inner part |
