TopPack XPress
Plastic Tube Container TopPack XPress
High quality single piece packaging with XPress shankholding system. Ideal for precision shank tools such as solid carbide cutters and drills
- XPress plug design for simple and secure loading/removal of tool
- diagonally arranged clamping webs in the mounting base ensure perfect hold
- user-friendly function ensures easier and safer handling of sensitive and sharp-edged cutting tools
Product features TopPack XPress

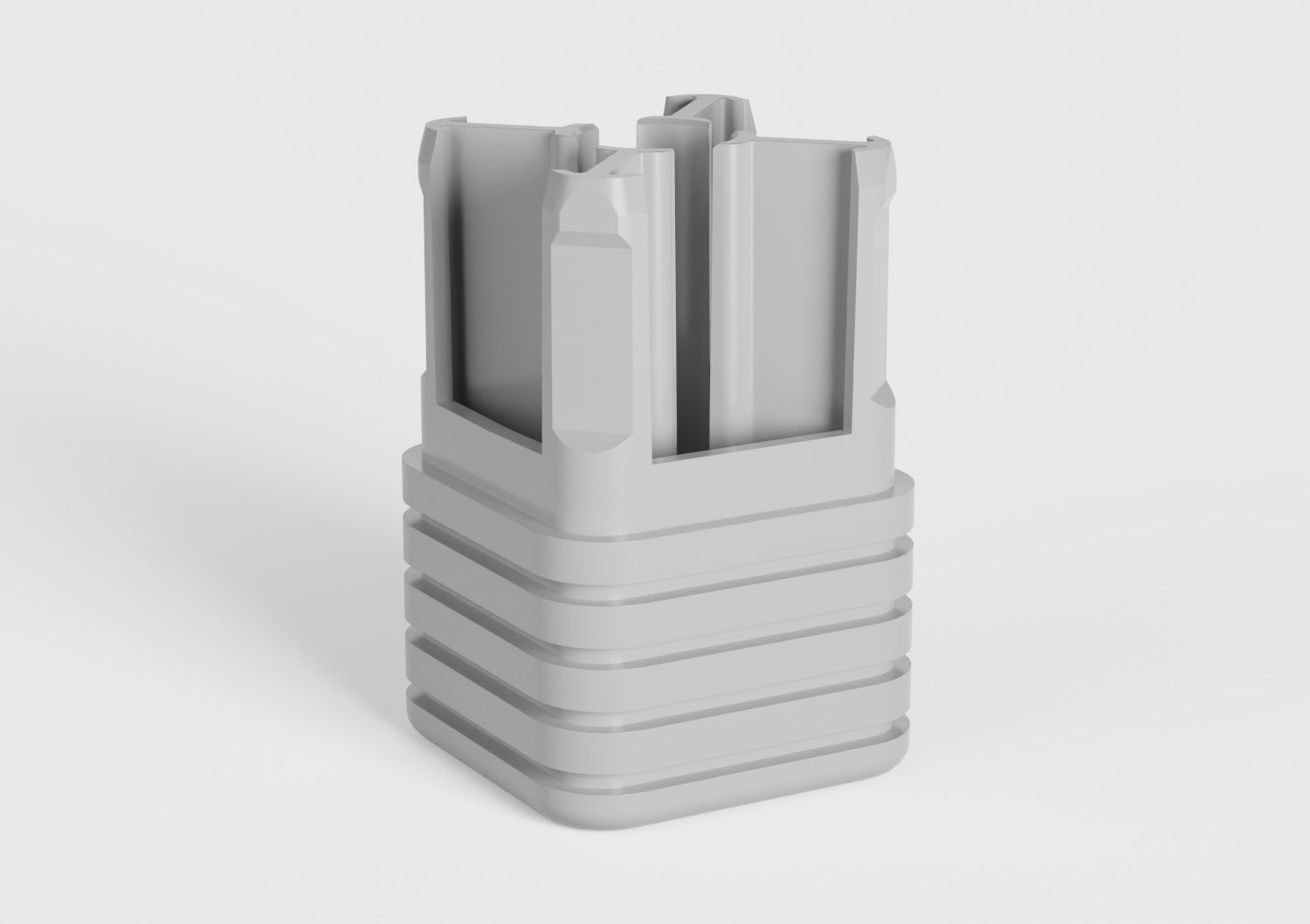

The patented XPress shank clamping of TopPack XPress sets new standards in terms of user-friendliness and optimum holding force. As the transparent tube is fitted to the base plug, the diagonal clamping ribs are pressed hard against the tool and ensures secure shank holding. The shank remains loosely held during loading and removal of sensitive and sharp-edged cutting tools, resulting in easier and safer handling during the packaging process.
- XPress plug design for simple and secure loading/removal of tool
- diagonally arranged clamping webs in the mounting base ensure perfect hold
- user-friendly function ensures easier and safer handling of sensitive and sharp-edged cutting tools
- grooves in side of plug assist easy opening/closing
- used in conjunction with end caps increases tool holding and gives extra protection of delicate tools
- outers click securely into place with ratchet mechanism
- durable and reusable
- sturdy, oil, and moisture resistant
- For information on the compatibility between the outer part and the base plug and the resulting usable length, please refer to the last page of the data sheet
Available in the following materials
- outer part: Polypropylene (PP)
- base plug: Polyethylene (PE)
Available in the following variants
- outer part in transparent
- base plug and adapter in various attractive standard colors
- outer parts and base plugs are packed separately in individual cartons
Delivery program
| Image | Name | Actions | ||
|---|---|---|---|---|
|
TPKXP 13x25-1/2"/1 I gray 01 LDPE 04
Material number: 102969 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 12.70 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-10/1 I gray 01 LDPE 04
Material number: 102966 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 10.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-12/1 I gray 01 LDPE 04
Material number: 102968 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 12.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-3/8"/1 I gray 01 LDPE 04
Material number: 102965 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 9.53 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-16/1 I gray 01 LDPE 04
Material number: 102974 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 16.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 20x40-20/1 I gray 01 LDPE 04
Material number: 102977 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 20.00 Inner length (mm): 40.00 Shank diam. (mm): 20.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-1/4"/1 I gray 01 LDPE 04
Material number: 102953 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 6.35 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-6/1 I gray 01 LDPE 04
Material number: 102952 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 6.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-8/1 I gray 01 LDPE 04
Material number: 102955 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: gray 01 Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 8.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part |
