TopPack XPress

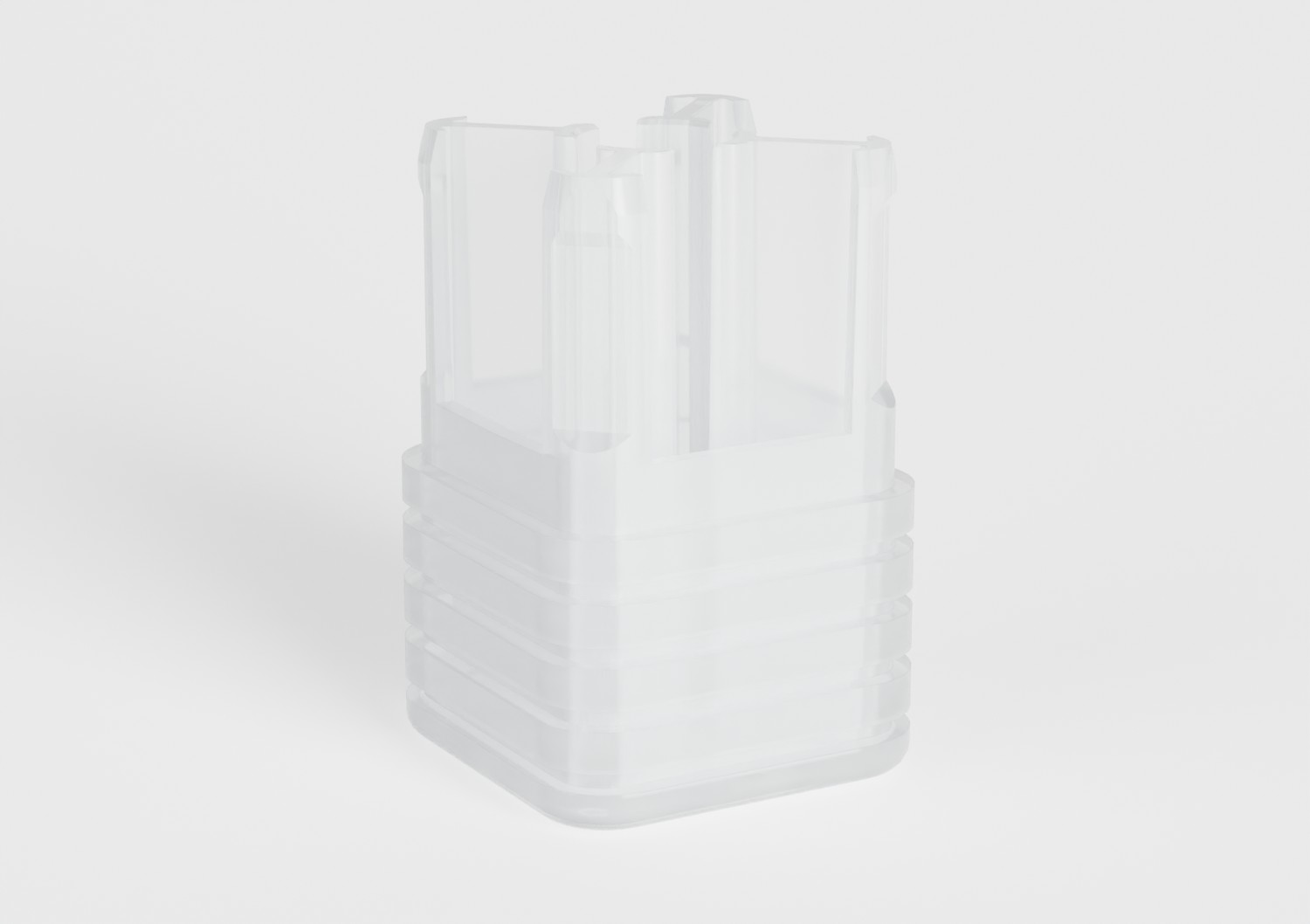

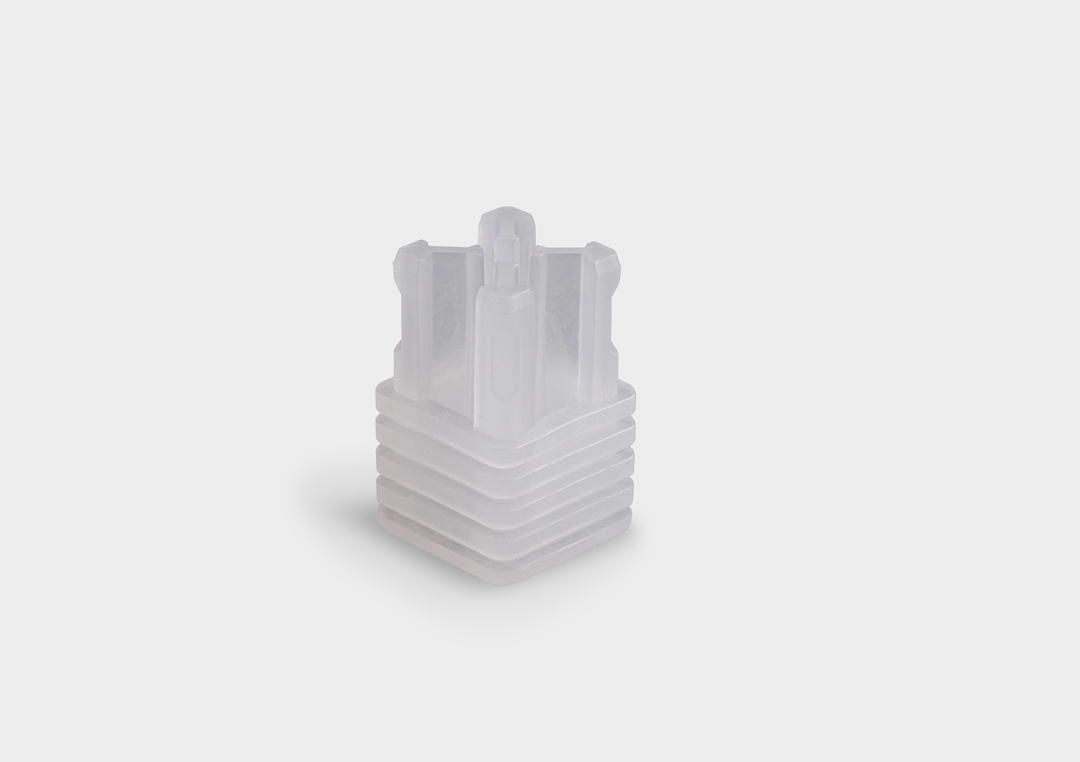

Plastic Tube Container TopPack XPress
High quality single piece packaging with XPress shankholding system. Ideal for precision shank tools such as solid carbide cutters and drills
- XPress plug design for simple and secure loading/removal of tool
- diagonally arranged clamping webs in the mounting base ensure perfect hold
- user-friendly function ensures easier and safer handling of sensitive and sharp-edged cutting tools
Product features TopPack XPress
The patented XPress shank clamping of TopPack XPress sets new standards in terms of user-friendliness and optimum holding force. As the transparent tube is fitted to the base plug, the diagonal clamping ribs are pressed hard against the tool and ensures secure shank holding. The shank remains loosely held during loading and removal of sensitive and sharp-edged cutting tools, resulting in easier and safer handling during the packaging process.
- XPress plug design for simple and secure loading/removal of tool
- diagonally arranged clamping webs in the mounting base ensure perfect hold
- user-friendly function ensures easier and safer handling of sensitive and sharp-edged cutting tools
- grooves in side of plug assist easy opening/closing
- used in conjunction with end caps increases tool holding and gives extra protection of delicate tools
- outers click securely into place with ratchet mechanism
- durable and reusable
- sturdy, oil, and moisture resistant
- For information on the compatibility between the outer part and the base plug and the resulting usable length, please refer to the last page of the data sheet
Available in the following materials
- outer part: Polypropylene (PP)
- base plug: Polyethylene (PE)
Available in the following variants
- outer part in transparent
- base plug and adapter in various attractive standard colors
- outer parts and base plugs are packed separately in individual cartons
Delivery program
| Image | Name | Actions | ||
|---|---|---|---|---|
|
TPKXP 13x25-1/2"/1 I natural LDPE 04
Material number: 56411 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 12.70 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-1/4"/1 I natural LDPE 04
Material number: 60991 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 6.35 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-10/1 I natural LDPE 04
Material number: 56417 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 10.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-12/1 I natural LDPE 04
Material number: 56418 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 12.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-2.35/1 I natural LDPE 04
Material number: 64423 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 2.35 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-3/1 I natural LDPE 04
Material number: 56412 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 3.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-3/8"/1 I natural LDPE 04
Material number: 60992 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 9.53 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-4/1 I natural LDPE 04
Material number: 56413 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 4.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-5/1 I natural LDPE 04
Material number: 56414 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 5.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-6/1 I natural LDPE 04
Material number: 56415 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 6.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-7/1 I natural LDPE 04
Material number: 60993 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 7.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-7/16"/1 I natural LDPE 04
Material number: 60995 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 11.11 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-8/1 I natural LDPE 04
Material number: 56416 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 8.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 13x25-9/1 I natural LDPE 04
Material number: 60994 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 13.00 Inner length (mm): 25.00 Shank diam. (mm): 9.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-12/1 I natural LDPE 04
Material number: 64424 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 12.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-13/1 I natural LDPE 04
Material number: 116265 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 13.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-14/1 I natural LDPE 04
Material number: 56420 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 14.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-15/1 I natural LDPE 04
Material number: 116266 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 15.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-16/1 I natural LDPE 04
Material number: 56421 Packaging unit: 250 Minimum order quantity: 250 Availability: On stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 16.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-5/8"/1 I natural LDPE 04
Material number: 56419 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 15.88 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
TPKXP 18x34-9/1 I natural LDPE 04
Material number: 115207 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 9.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 18x34-9/16"/1 I natural LDPE 04
Material number: 60996 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 18.00 Inner length (mm): 34.00 Shank diam. (mm): 14.29 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 20x40-18/1 I natural LDPE 04
Material number: 56422 Packaging unit: 250 Minimum order quantity: 250 Availability: On stock |
Color: without color Inner diameter (mm): 20.00 Inner length (mm): 40.00 Shank diam. (mm): 18.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 20x40-20/1 I natural LDPE 04
Material number: 56423 Packaging unit: 250 Minimum order quantity: 250 Availability: On stock |
Color: without color Inner diameter (mm): 20.00 Inner length (mm): 40.00 Shank diam. (mm): 20.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 20x40-3/4"/1 I natural LDPE 04
Material number: 60997 Packaging unit: 250 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 20.00 Inner length (mm): 40.00 Shank diam. (mm): 19.05 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-1/4"/1 I natural LDPE 04
Material number: 56402 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 6.35 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-1/8"/1 I natural LDPE 04
Material number: 56403 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 3.18 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-2.35/1 I natural LDPE 04
Material number: 56409 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 2.35 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-2/1 I natural LDPE 04
Material number: 110438 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 2.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-3/1 I natural LDPE 04
Material number: 56404 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 3.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-3/16"/1 I natural LDPE 04
Material number: 56410 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 4.76 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-4/1 I natural LDPE 04
Material number: 56405 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 4.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-5/1 I natural LDPE 04
Material number: 56406 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 5.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-6/1 I natural LDPE 04
Material number: 56407 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 6.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-7/1 I natural LDPE 04
Material number: 83050 Packaging unit: 1000 Minimum order quantity: 3000 Availability: Not on stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 7.00 Availability: Not on stock | Material: LDPE 04 Type of part: Inner part | |
|
|
TPKXP 8x18-8/1 I natural LDPE 04
Material number: 56408 Packaging unit: 1000 Minimum order quantity: 1000 Availability: On stock |
Color: without color Inner diameter (mm): 8.00 Inner length (mm): 18.00 Shank diam. (mm): 8.00 Availability: On stock | Material: LDPE 04 Type of part: Inner part |
